Imagine building a race car chassis that shaves crucial milliseconds off lap times, crafting a drone capable of extended flight durations, or designing prosthetics that combine comfort with unmatched durability. The secret behind these breakthroughs? It often comes down to something deceptively simple: the type of carbon fibre tubing used.
Not all carbon fibre tubes are created with the same level of precision, and the manufacturing method can significantly impact your project’s performance. The difference between roll-wrapped and filament-wound carbon fibre tubes is a critical choice impacting your product’s strength, weight, reliability, aesthetics, and even cost-effectiveness.
That’s where the conversation of roll-wrapped vs filament-wound tubes begins.
In this guide, we’ll break down the two most common production methods, roll-wrapping and filament winding and help you determine which one best suits your structural application. Let’s start by understanding what each method entails.
What Are Roll-Wrapped Tubes?
Roll-wrapped carbon fibre tubes are made using a method that combines precision, strength, and design versatility, making them a favourite in high-performance industries.
The process starts with pre-impregnated (prepreg) carbon fibre cloth, which is laid by hand or machine around a cylindrical mandrel. The carbon layers are wrapped in specific orientations, typically at 0°, ±45°, and 90° to create a balanced, multi-directional strength profile. The assembly is then cured under heat and pressure to form a strong, consistent, and visually clean structure.
One of the standout advantages of this method is its customisation. With roll-wrapping, engineers can fine-tune the fibre direction to meet precise load-bearing needs. It could be resisting torsion, compression, bending, or axial loads. This makes them ideal for structural applications where forces are coming from multiple directions.
Because of their balanced mechanical performance and finish quality, roll-wrapped tubes are widely used in:
- Aerospace and UAV components
- Motorsport and performance automotive parts
- Robotic arms and automated systems
- Prosthetics and medical imaging support
- Camera rigs, sporting goods, and consumer tech
What Are Filament-Wound Tubes?
Now, let’s look at filament-wound carbon fibre tubes, which are made using a very different approach and are often used in completely different types of applications.
Instead of carbon cloth, this method uses continuous strands of carbon fibre, which are soaked in resin and wound under tension around a rotating mandrel. The winding angles are typically ±45° or hoop-dominant, optimised to create exceptional circumferential (hoop) strength.
Once the layers are wound, the tube is cured, usually in an oven, to harden the structure. The result is a strong, lightweight tube that’s very good at resisting internal pressure, but often less capable under axial or torsional loads.
However, they’re also more limited in design flexibility. Fibre orientation is largely fixed, and the shapes are mostly restricted to straight, cylindrical forms.
That said, filament-wound tubes remain a smart choice for:
- Pipes and pressure vessels
- Drive shafts or torsion bars (if aligned with load paths)
- Tanks, rollers, and industrial equipment
- Structural tubing for basic mechanical use
Where Roll-Wrapped Tubes and Filament-Wound Tubes Differ
When choosing between roll-wrapped and filament-wound carbon fibre tubes, the differences should be considered beyond the manufacturing process.
Each method produces tubes with distinct performance characteristics, structural advantages, and application suitability.
Here’s a quick carbon fibre tube comparison across the properties that matter most:
| Property | Roll-Wrapped Tubes | Filament-Wound Tubes |
|---|---|---|
| Fibre Orientation | Fully customisable (0°, 90°, ±45°) | Limited (typically ±45° or hoop winding) |
| Strength Characteristics | Balanced axial, torsional, and radial load handling | Excellent hoop strength, weaker axially |
| Shape & Geometry | Supports tapers, curves, and localised reinforcements | Mostly straight cylindrical shapes |
| Surface Finish | Smooth and cosmetic-ready with premium composite tube finishes | Rougher surface, often needs post-processing |
| Dimensional Tolerance | High precision (thanks to machined mandrels and prepreg layup control) | Moderate accuracy due to winding method limitations |
| Volume Suitability | Ideal for custom, low-to-mid production runs | More cost-effective for high volume, standardised parts |
If you’re working on a complex structure or you’re weighing up carbon fibre vs aluminium weight performance, roll-wrapped tubes offer a step-change in efficiency. With up to 50% weight savings and 3.8 times the tensile strength of aluminium, they’re a powerful solution in a growing range of fields.
Advantages of Roll-Wrapped Tubes Over Filament-Wound Tubes
So why do engineers, designers, and manufacturers often prefer roll-wrapped vs filament-wound tubes?
Let’s dive into the specific benefits.
Superior Multi-Directional Strength
One of the key advantages of roll-wrapped carbon fibre tubes is their tailored fibre lay-up. By orienting fibres at 0°, ±45°, and 90°, these tubes can be engineered to resist a combination of axial, torsional, and radial loads.
This makes them ideal for carbon fibre tubes for structural applications like:
- High-speed robotic arms
- UAV frames
- Motorsport chassis components
- Aerospace antenna booms
Aesthetic Appeal
For a prosthetic limb, a camera rig, or a racing bike frame, aesthetics can be just as important as performance.

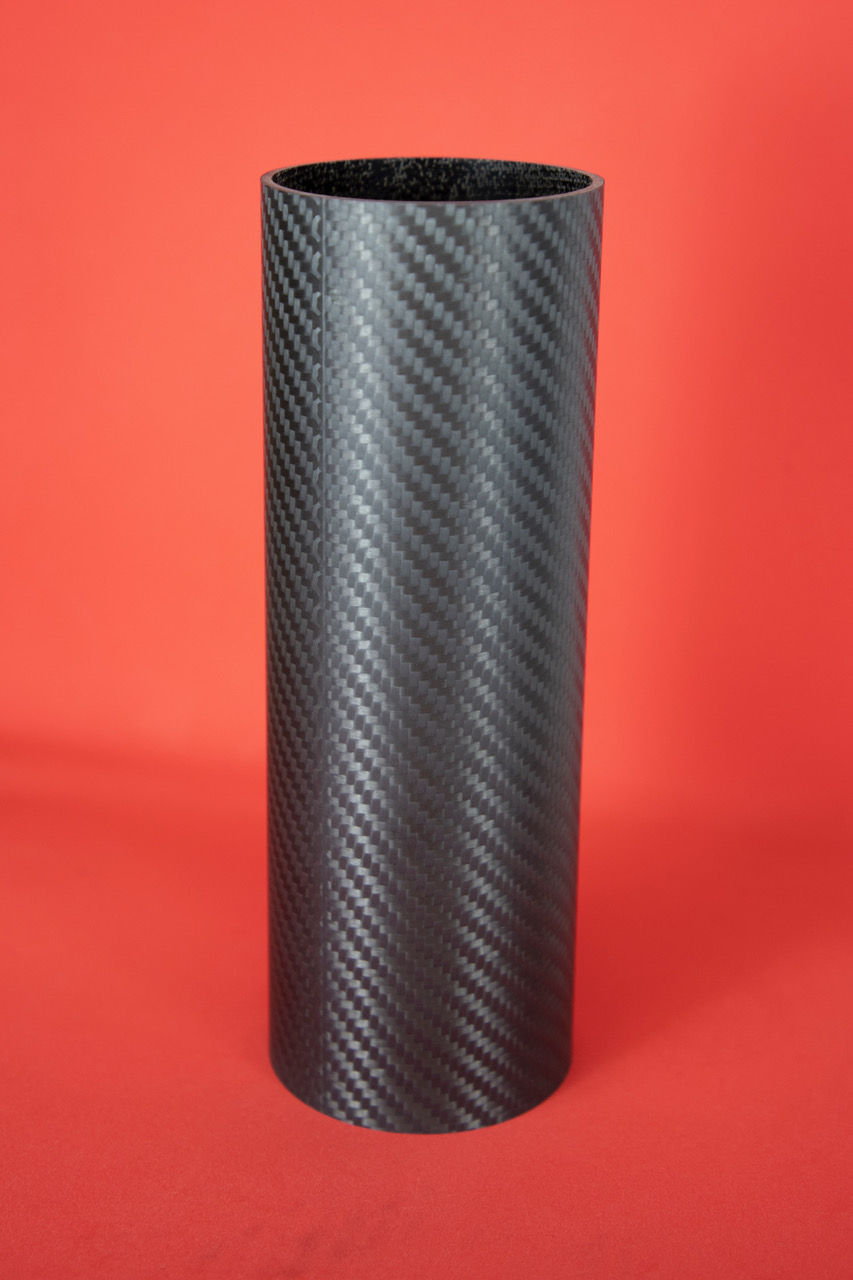

Roll-wrapped tubes offer visually clean finishes with minimal surface imperfections. You’ll often see the iconic woven carbon fibre look on high-end components, and it’s no accident; these finishes are engineered for both appearance and function.

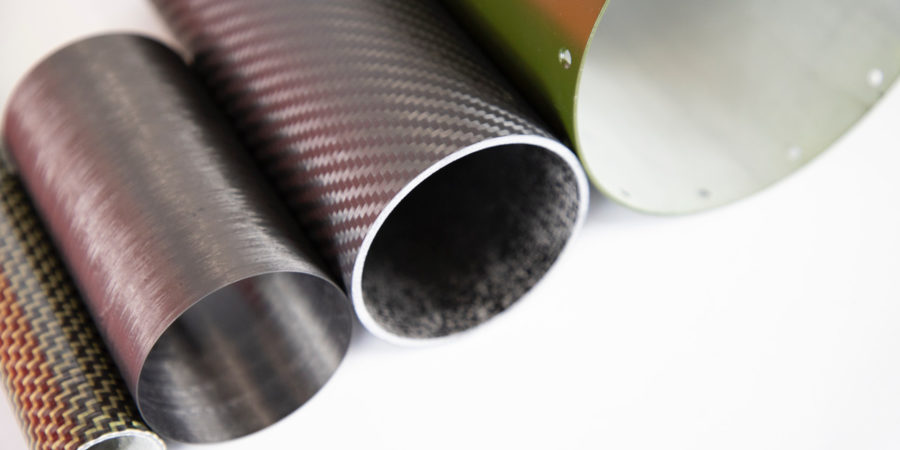

Available options include:
- High-gloss carbon weave
- Smooth to touch matte finishes
- Custom-colour coatings
Design Versatility
Need a progressive taper, oval cross-section, or selective reinforcement for high-stress areas? With roll-wrapped tubes, that’s all possible.
Because the prepreg lay-up is manually controlled (or precisely automated), designers can create custom carbon fibre tubes tailored to very specific load paths or spatial constraints.
This makes roll-wrapping the ideal method for:
- Medical device supports with integrated radiolucency zones
- Tapered tubes in telescopic poles or UAV booms

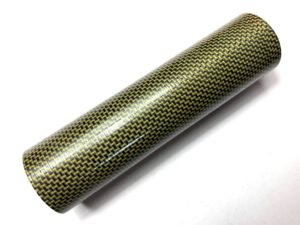

- Hybrid carbon/Kevlar combinations for impact protection
Precision and Consistency
In many carbon fibre tubing manufacturing methods, maintaining tight tolerances can be tricky. But roll-wrapped tubes excel in this area.
Because the process uses machined mandrels and carefully controlled prepreg layers, you get highly accurate internal and external diameters, essential for applications where parts need to slot into housings, bearings, or fittings.
Enhanced Durability
Another tick in the roll-wrapped column is durability, especially under repeated loading.
Roll-wrapped tubes typically demonstrate:
- Better resistance to point loads
- Higher tolerance for fatigue and cyclic stress
- Longer service life in high-demand environments
They also tend to absorb and distribute impacts more evenly, a key factor in applications subject to vibration, high-frequency loading, or sudden shocks (think motorsport, robotics, or marine environments).
Limitations of Filament-Wound Tubes
While filament-wound carbon fibre tubes offer specific advantages, particularly for high-volume production and hoop-stress applications, they do come with several limitations that can affect performance and versatility.
- These tubes are less capable under axial and torsional loads, making them unsuitable for structures that experience multi-directional forces. In comparison to roll-wrapped carbon fibre tubes, which can be tailored to manage a mix of stresses, filament-wound tubes are more one-dimensional in strength.
- They’re also restricted to straight cylindrical geometries. If your design calls for tapers, curves, or complex shaping, filament winding simply won’t accommodate those requirements. You’re largely limited to uniform tube sections.
- From an aesthetic standpoint, the surface finish is often rough and visibly spiralled, not ideal if your component will be visible or needs a refined, cosmetic appearance. This rough texture often requires secondary finishing, which adds time and cost.
- Filament-wound tubes lack adaptability when it comes to custom or variable-length production. Adjusting mandrel sizes or altering fibre orientation isn’t quick or cost-effective, which limits design flexibility, particularly for custom carbon fibre tubes.
When to Choose Roll-Wrapped Tubes
Given the limitations of filament winding, when does it make sense to choose roll-wrapped carbon fibre tubes instead?
1. When multi-directional strength is essential
If your component will face torsion, bending, compression, and axial loading, such as robotic joints, drone arms, or suspension struts, then roll-wrapping offers the best solution. Custom fibre layups give you control over where and how strength is distributed.
2. If appearance matters
From tripods and medical supports to bike frames and luxury products, surface finish is key. Roll-wrapped tubes come with a variety of composite tube finishes, gloss, matte, or classic woven, to match both aesthetic and functional demands.
3. For low to medium volume runs
Unlike filament winding, roll-wrapping is more flexible when it comes to smaller or custom batches. If you’re developing a new product or producing in smaller quantities, this method makes far more economic and practical sense.
4. When tolerances are tight
Applications in aerospace, automation, and metrology demand absolute precision. With machined mandrels and prepreg layups, roll-wrapped tubes deliver consistent, repeatable quality, critical for tight-fitting or moving assemblies.
Where Would Roll-Wrapped Tubes Be Applied?
Thanks to their lightweight strength, customisable design, and impressive durability, roll-wrapped carbon fibre tubes are being used across a wide range of industries, from aerospace to automation. Here’s a look at where these tubes are making a real difference:
-
Aerospace & Satellites
In space applications, every gram counts. Replacing aluminium with carbon fibre often means cutting weight by 50% while gaining superior performance. Roll-wrapped tubes are ideal for antenna booms, optical benches, and other structural reinforcement materials where thermally stable materials are essential.
Their low thermal expansion ensures critical instruments stay perfectly aligned even during extreme temperature swings in orbit. For satellites or UAVs, roll-wrapped tubes deliver the rigidity and stability aerospace engineers depend on.
-
Motorsport & High-Performance Automotive
In racing, shedding even a kilo can improve handling and faster lap times. Swapping out metal parts for roll-wrapped carbon fibre tubes, such as torque tubes, rear wing elements, or steering columns, can drastically enhance performance.
With a significantly better strength-to-weight ratio compared to metal and a range of composite tube finishes, roll-wrapped tubes combine form and function beautifully in motorsport and custom automotive builds.
-
Industrial Automation & Robotics
In factory environments, speed and precision matter. Lightweight yet stiff, roll-wrapped tubes are ideal for robotic arms, pick-and-place booms, and precision rollers.
Their resistance to flex and fatigue reduces maintenance and boosts throughout.
When paired with tight dimensional tolerances, these tubes help engineers build high-performance automation systems that run faster and more efficiently.
-
Medical Devices & Prosthetics
Carbon fibre’s radiolucency makes it a preferred material in medical applications where X-ray transparency is required. Roll-wrapped tubes are used in table supports, C-arm structures, and lightweight prosthetic limbs, all while ensuring high strength and patient comfort.
Compared to metal, carbon also eliminates cold-touch issues and reduces weight, making it a patient-friendly alternative for long-term use.
-
Scientific Equipment & Metrology
Roll-wrapped tubes play a key role in precision measuring instruments, including coordinate measuring machines (CMMs), telescopes, and laboratory rigs.
Why? Their near-zero thermal expansion prevents measurement drift, and their fatigue resistance ensures long-term stability. It’s this combination of precision and reliability that makes them a go-to material for labs and research facilities.
-
Marine & Offshore
Saltwater is no friend to metal, but carbon fibre? It shrugs it off. Roll-wrapped carbon tubes are used for ROV arms, mast supports, and rowing oars in marine and offshore environments where corrosion is a concern.
They offer outstanding fatigue resistance, zero galvanic corrosion, and years of dependable service without the rust or degradation that plague metal components.
-
Drones & UAVs
Flight time is very crucial in drone operations. A reduction in structural weight thanks to roll-wrapped tubes means longer flight duration, higher payload capacity, and better stability.
Whether you’re building quadcopters, fixed-wing drones, or next-gen UAVs, roll-wrapped carbon tubes give you the performance edge and structural efficiency needed in competitive markets.
What We Think?
When comparing roll-wrapped vs filament-wound tubes, it becomes clear: roll-wrapped tubes come out on top in key areas like strength, surface finish, dimensional control, and design flexibility.
They’re especially suited for structural applications where precision, weight, and performance can’t be compromised. Yes, roll-wrapped carbon fibre tubes may carry a higher initial cost, but when you factor in the benefits, they’re a sound long-term investment.
